Single-Shaft shredder SS/F1000

Item Code:SS/F1000 Features:The shredder is most important leading products of us which adopted with advanced technology and good quality.It has become the necessary and most popular machine in plastic recycling industry now.
  • Description

A. Features of Plastic single shaft shredder

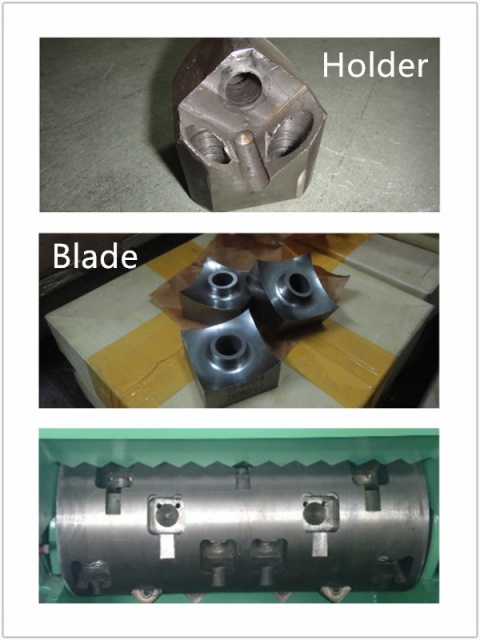

  1.Movable blade,dismounting convenience, easy for cleaning and maintenance.

  2.Each rotary blade has four cutting edge, can be used again after rotating 90°.

  3.Hvaing reducer with spindle,smooth operation, low noise, large rotating torque.

  4.PLC control system,positive and negative turn automatically,running machine more safety.

  5. Backfire treament after weldinging tank,  dissolve weld stress.

  6.Blade position apply precision machining,making sure the same space between each rotary knife and fixed knife.

  7.Rotary blade position adopts embedded with high strength screw connected to blade spindle, can prevent the phenomenon that welding blade drop by long-term quake.



B. Specification of Single shaft shredder- - SS/F1000

Model                                                   SS-F1000
Main motor                                           45kw
Hydraulic motor                                     2.2kw
Bleads(fixed+rotary)                               42 +2pic
Bleads material                                     D2  (hrc58-60)
Running diameter                                  400mm
Roller length                                         1000mm
Rotor speed                                         83rpm
Cyclinder travel length                           900mm
Inlet size(mm)                                      1000X900
capacity                                              500-600kg/h  for film  ,   700-900kg/h for lumps



C. Videos:

1. SHredder for Plastic lumps/blocks

2. Shredder for PE Fishing Nets

3. Shredder for Wood

4. Shredder for Film in Roller

5. Shredder for Long Pipe

6. Shredder for PE Bags



D. Certificate  Of  Plastic single shaft shredder

CE
