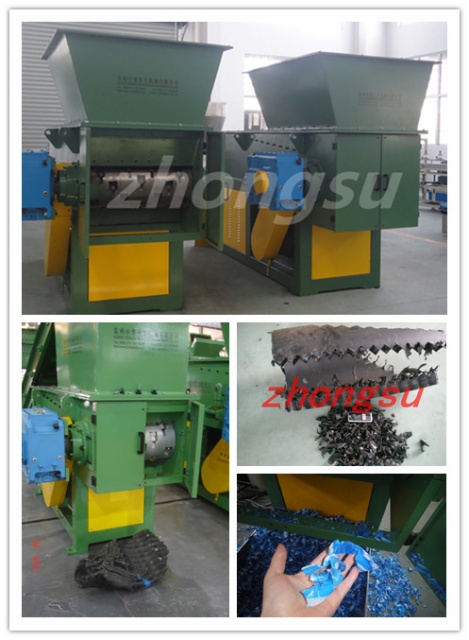

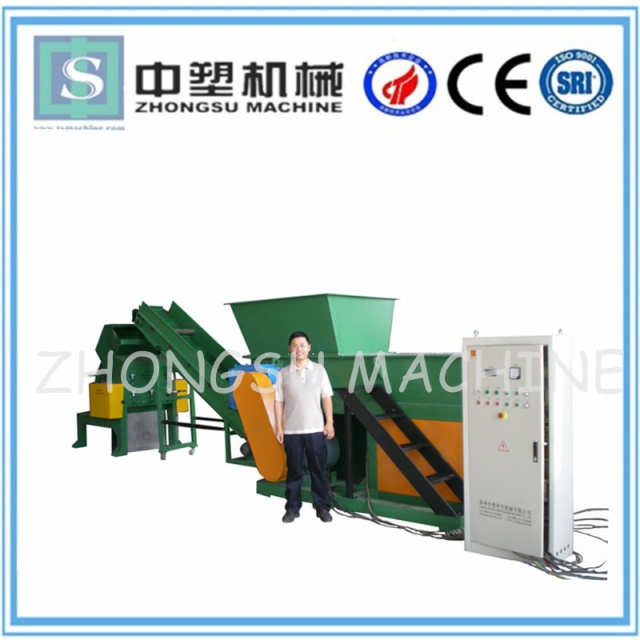

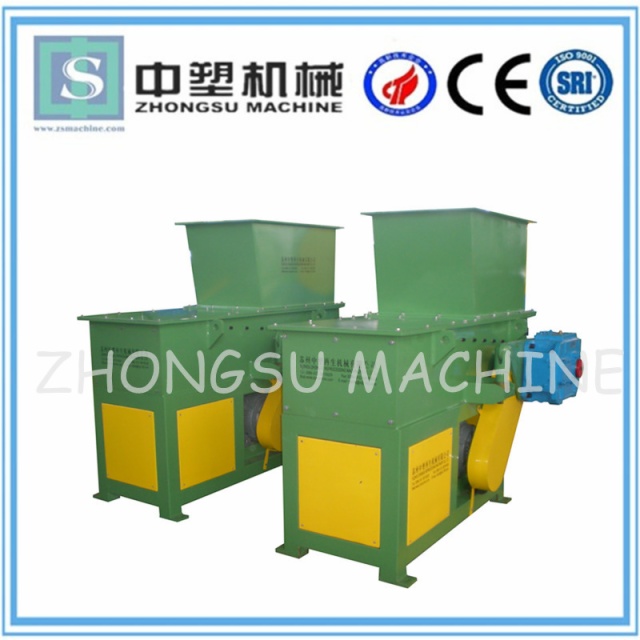

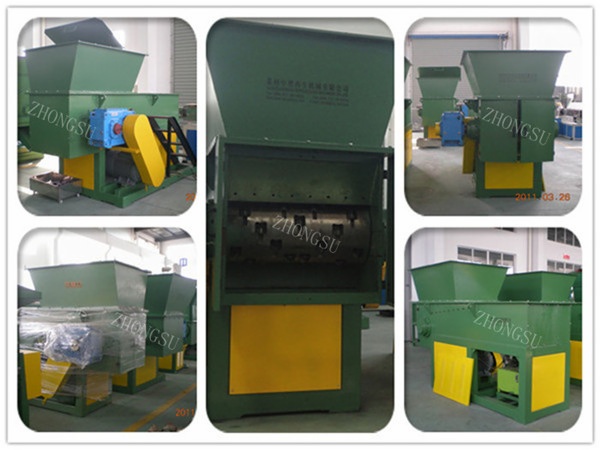

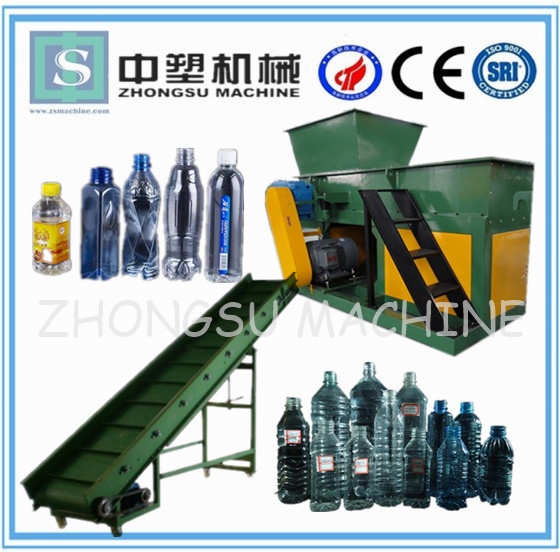

A. Features of Plastic single shaft shredder

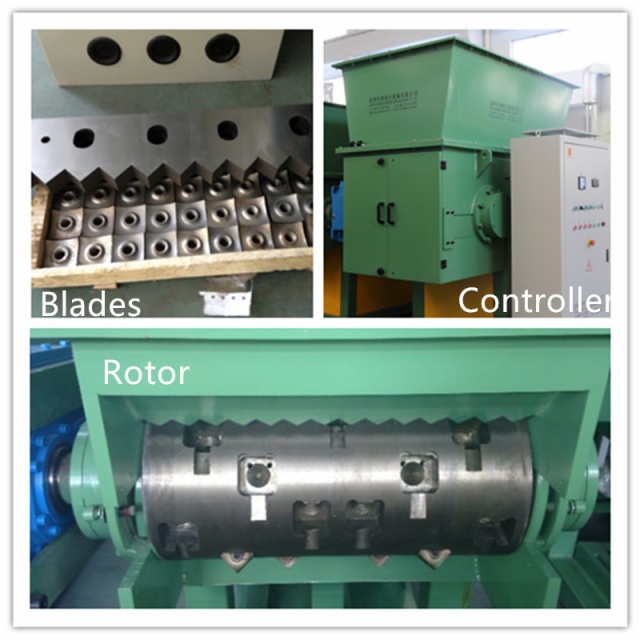

1.Movable blade,dismounting convenience, easy for cleaning and maintenance.
2.Each rotary blade has four cutting edge, can be used again after rotating 90°.
3.Hvaing reducer with spindle,smooth operation, low noise, large rotating torque.
4.PLC control system,positive and negative turn automatically,running machine more safety.
5. Backfire treament after weldinging tank, dissolve weld stress.
6.Blade position apply precision machining,making sure the same space between each rotary knife and fixed knife.
7.Rotary blade position adopts embedded with high strength screw connected to blade spindle, can prevent the phenomenon that welding blade drop by long-term quake.
B. Specification of Single shaft shredder- - SS/F1400
Model SS-F1400
Main motor 75/90kw
Hydraulic motor 2.2kw
Bleads(fixed+rotary) 60 +2pic
Bleads material D2 (hrc58-60)
Running diameter 450mm
Roller length 1400mm
Rotor speed 83rpm
Cyclinder travel length 900mm
Inlet size(mm) 1400X1300
capacity 800-1500kg/h for film , 1200-1800kg/h for lumps
C.Videos:
1. SHredder for Plastic lumps/blocks
2. Shredder for PE Fishing Nets
3. Shredder for Wood
4. Shredder for Film in Roller
5. Shredder for Long Pipe
6. Shredder for PE Bags
D. Certificate Of Plastic single shaft shredder
